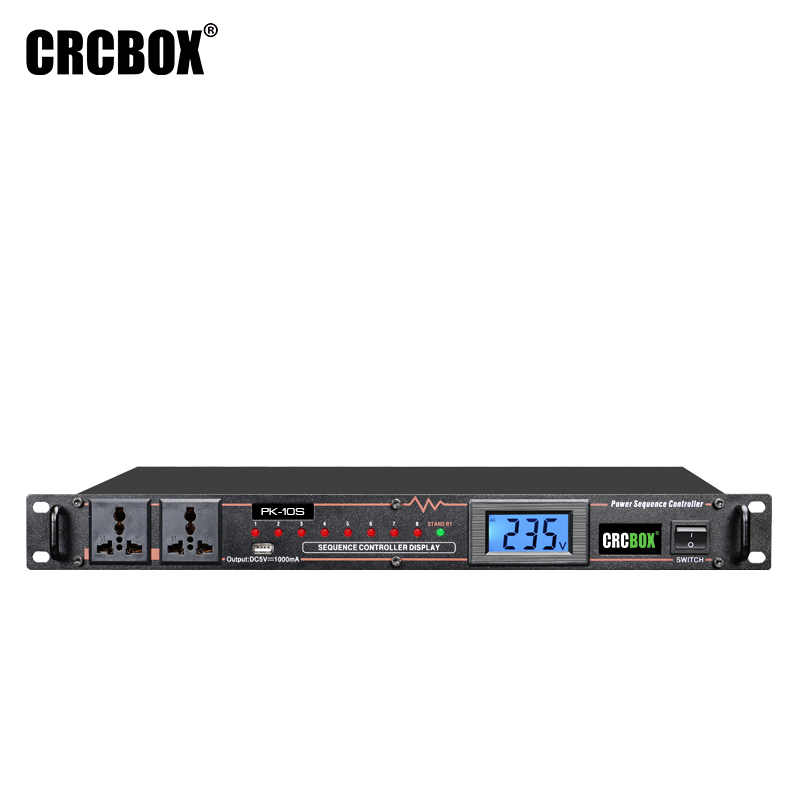

1 Panel color: iron black
2 Power input conditions (single-phase 3-wire): AC90-260V 50-60HZ two-phase (three-wire: zero, fire, ground)

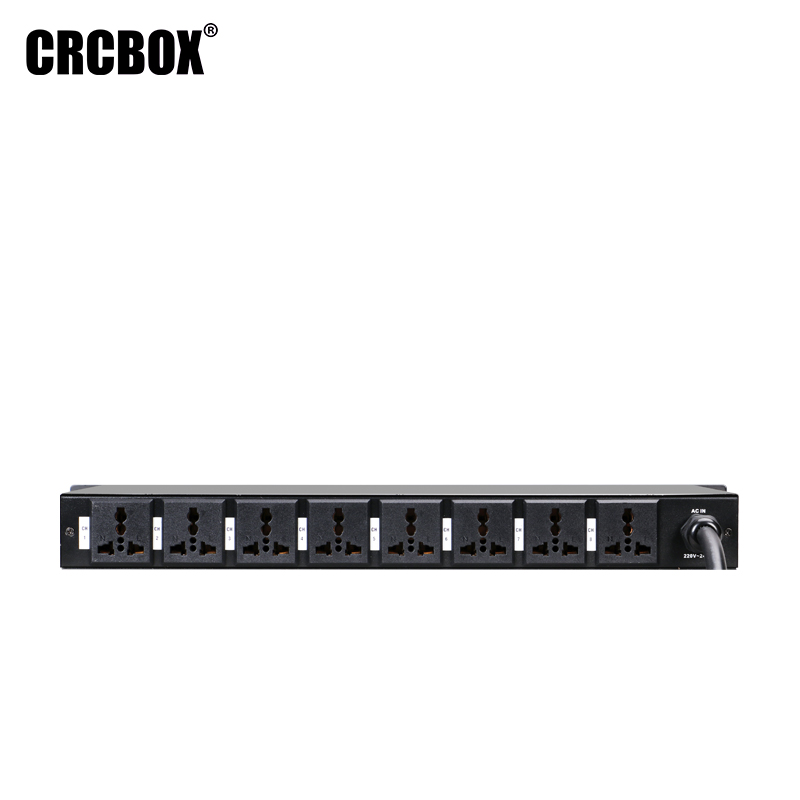

3 channels: 8-channel universal socket relay controlled and 2-channel universal socket direct output
4 Relay controlled output maximum withstand single power / total power (reactive power): 5000W / 8000W maximum withstand reactive power
5 Output power socket specifications: flame retardant ABS material, up to 10A current brass material, standard universal socket
6 Features Features: 1. Turn on in sequence and turn off in reverse order 2. PASS key can turn on all channels at the same time 3. Precise voltage display 4. Overcurrent protection 5. Panel channels are turned off independently 6. The maximum output of the USB interface is 5V / 500MA and can be connected to DJ light
7 Interval / time of each switch: 1 second by default
8 Output relay contact current: 10A
9 Circuit board specifications: double-sided fiberboard, secondary power supply wiring thickening and thickenin
10 Power supply specifications: built-in switching power supply, suitable for global voltage AC90-260V 50-60HZ
11 Main cable specifications: 3 * 4 square cable, total length is 1.0 meter (without power input plug)
12 Open type: square boat type switch
13 Function display voltage display meter type: red and green digital tube display voltmeter
14 Power purification function (EMI professional grid filter): None (optional with separate or each band filter)
15 Short circuit overcurrent protection circuit breaker configuration: circuit breaker zero, live wire control, overcurrent protection, (63A short circuit protection)
~110V/60Hz or ~230V/50Hz
