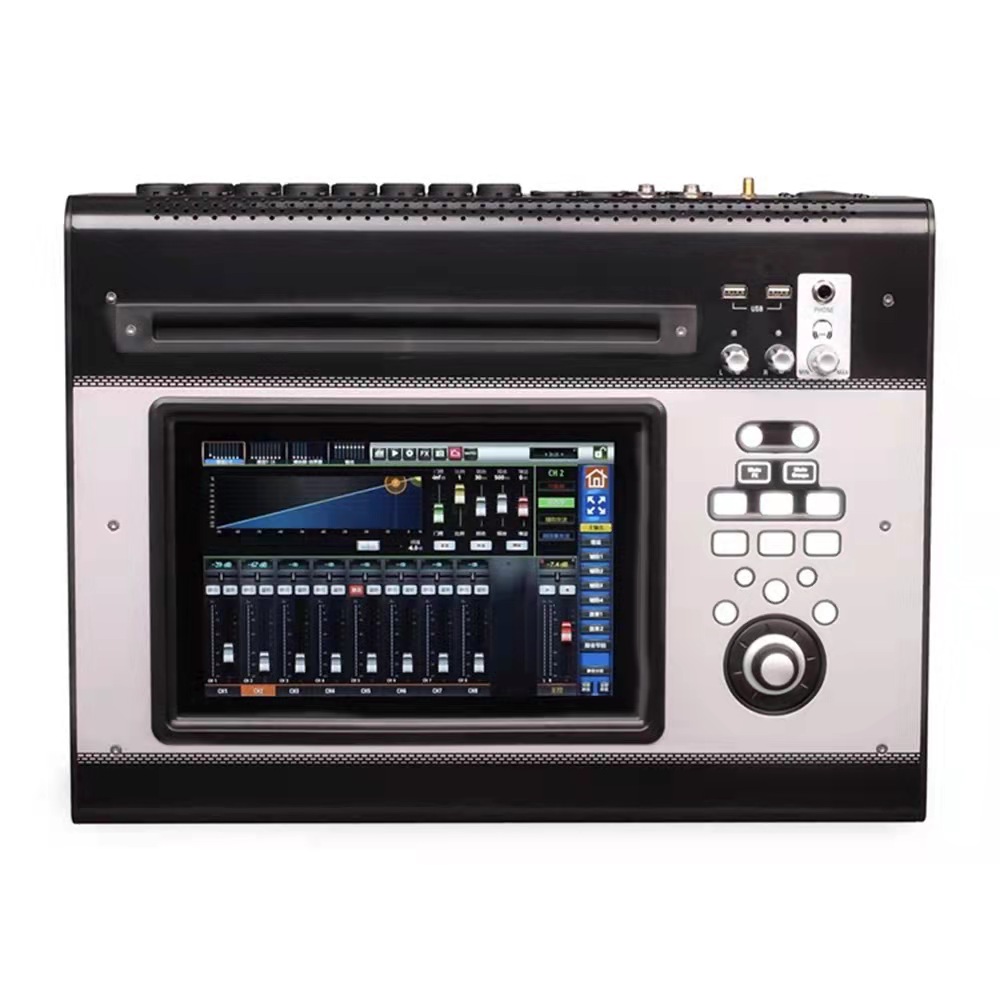

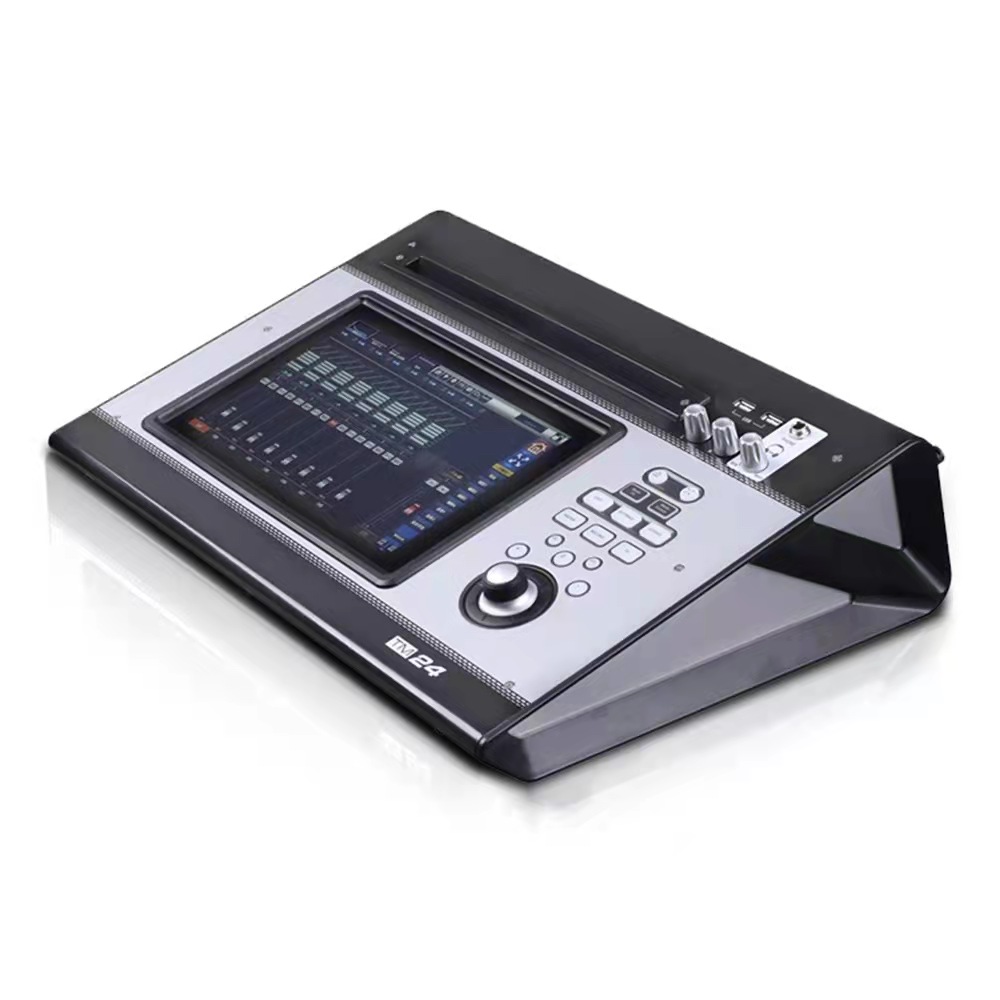

The TM-24 is designed for musicians, professionals and live performances, with a compact size, a simple operation interface, professional mixing effects, and an excellent ability to play in a large concert.
The TM-24 is powerful enough to meet the needs of the most demanding professionals, with a range of features and functions that help less experienced users quickly achieve high-quality results. 16 input channels and USB (2 input channels) provide users with a variety of configuration options, 10-inch color touch screen control, with the data wheel to adjust parameters, 3 high-quality stereo effect processors: reverb, delay, chorus, etc., 4 AUX and 1 mute grouping, WiFi wireless control, dual track recording and playback are also available. TM-24 has created a new concept of fusion of modern touch and traditional operation.
* Can be used for mobile performances, fixed installations, entertainment, personal production and other places;
* The touch screen is combined with the physical wheel, and the operation is intuitive;
* Supports USB dual-track recording and playback:
* 48V phantom power supply (can be controlled by one channel);
* Support custom scene presets;
*Integrated WIFI/hotspot, supports various systems such as tablet/PC/smartphone, and can be remotely controlled via WIFI after entering the correct
*IP address into the browser;
*Using high-quality microphone preamps, the sound quality is better;
*Built-in graphic/parametric equalization, limiter and other processing plug-ins;
*Built-in 3 effects.

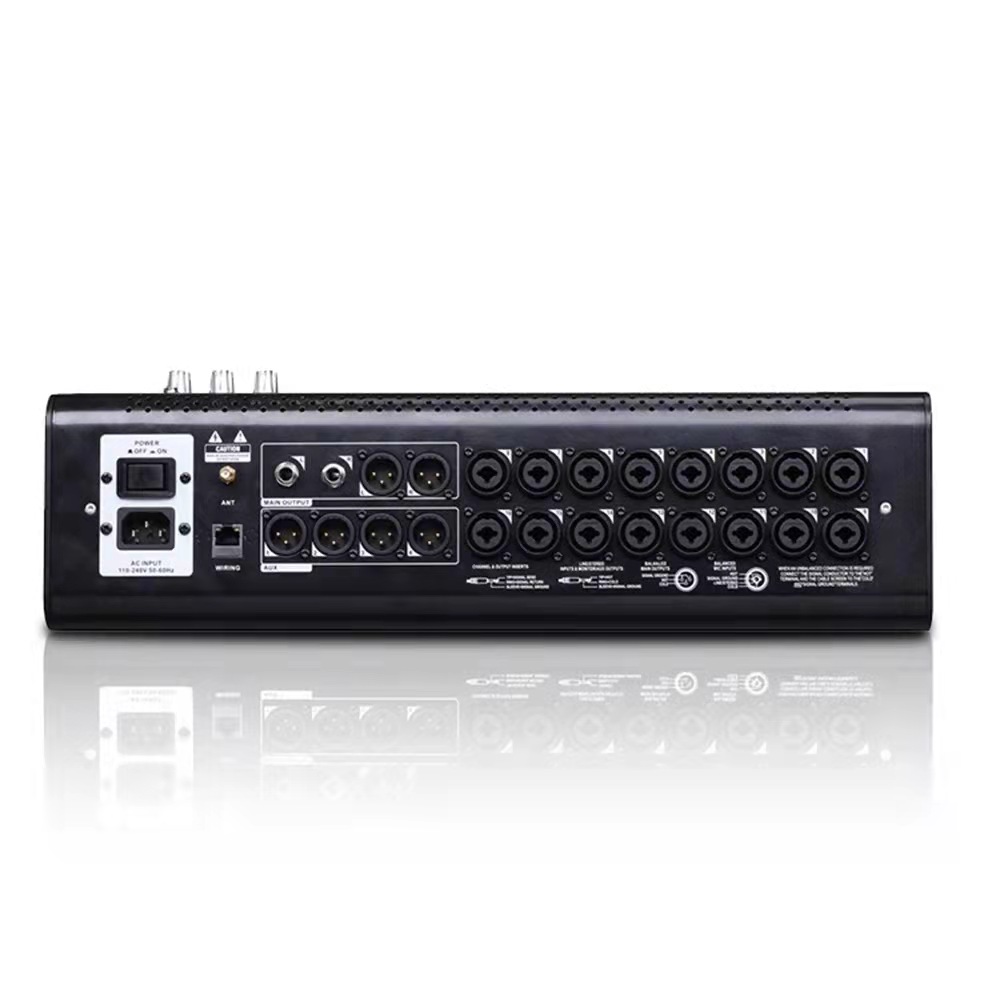

Input and output interface:
● Output: 2 main output (XLR interface); 4 auxiliary output (XLR interface): Output: 2 main output (XLR interface); 4 auxiliary output (XLR interface): 2 stereo auxiliary output (TRS interface), 1 pair of stereo main output, 1; monitor (TRS interface).
● Display: 9.7 inch (235mmx165mm) color TFT touch screen Includes accessories USB, WIFI adapter, carrying bag, power supply. Built-in WIFI adapter.
● Sampling frequency: 44.1kHz or 48kHz optional.
● Groups: 4 DCA groups (with mute), 1 mute group.
● DSP:Input channel: processing 4-band parametric equalization configuration high/low shelving type response settings, variable frequency point 24dB octave high-pass filter, gate, compressor;
● Output Channels: Processing main output and 1-4 aux outputs with 1/3-octave 31-band graphic: EQ, limiter, variable frequency point 18dB octave high-pass and low-pass filters.
● Recording function: dual track, requires USB3.0HD.FAT32 format, minimum 7800RPM o Effects: 3 professional effects, reverb, delay, chorus, etc. Analog to Digital
● Frequency response: 20Hz~20kHz:+0.15dB;
● THD Total Harmonic Distortion: -20dBFS@1kHz:<0.006%;
● Noise: Noise level (20/20k bandpass): -80.89dBFS; Noise level (A-weighted): 84.23dBFS; Crosstalk: Isolation between channels (+4dBu@1kHz):
-94.96dB/Isolation between channels (+4dBu@20kHz): -78.54dB;
● Level difference: Level difference between channels (+4dBu@20~20kHz): -0.07dB.
● Phase difference: Phase difference between channels (+4dBu@1k): 01°/phase difference between channels (+4dBu@20~20kHz): +0.8°:
● Equivalent noise: <-121dBu;
● Frequency response: 20Hz--20kHz: +1.24/-0.25;
● THD Total Harmonic Distortion: 20Dbfs@1kHz: 0.0078%:
● Noise: Noise level (20/20k bandpass): -75.98dBFS / Noise level (A-weighted): -78.64dBFS Crosstalk: Isolation between channels
(+4dB1k): -96.48 dB/Isolation between channels (+4dB20k): -77.42dB Level difference: Level difference between channels (+4dB20~20k): -0.15:
●Phase difference: Phase difference between channels (+4dB1k): -01°/Phase difference between channels (+4dB20~20k): 2°;
● Equivalent noise: -120.54dBu;
-20.0dB~70.0dB/(0.1 step step size accuracy depends on the fader size threshold of the GUI: read value: -∞~+6dB/auto transient/auto release;
● Compressor: Threshold Threshold:-90dB~+6dB/Compression Ratio ;
● Input channel equalizer: 4-band parametric equalizer/
● Frequency of each band: 20Hz~22kHz/Q:0.05~15/Gain:-20dB~+20dB/HPF:20Hz~22kHz;
● Output Channel Equalizer: 32-band GEO, 20Hz-20kHz.+15dB.
● Output Compressor: Threshold Threshold:-90dB~+6dB/
● Compression ratio Ratio:1:1~1000:1/
● Startup timeAttack:1ms~400ms/
● Release time Release: 10ms-2000ms/
● Makeup Gain: -24dB~+48dB +13dBu/
● Line Input: Maximum +13dBu/MIX/MASTER
● Output: Maximum +23dBu;
● Input and Output Impedance: Simplified Input: 2.5k0/
● Line Input: 10kQ/Hi-Z Input: 1MO/Output: All at 1000;
●USB: Maximum current: 500mA / Maximum current available for all ports: 900mA;
● Power Supply: Power Consumption (Typical): <25W/AC Input
● Voltage Range: 88~265VAC Auto Sensing:
● Operating conditions: Temperature range: 5°C~45°C / Humidity: 0%~90% / Storage temperature: -20°C-60°
