Connectors: 1/4 inch TRS, fenals XLR (pin 2 hot), and barrier terminal strip
Type: Electronically balanced/unbalanced, RF filtered
Maximum Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz

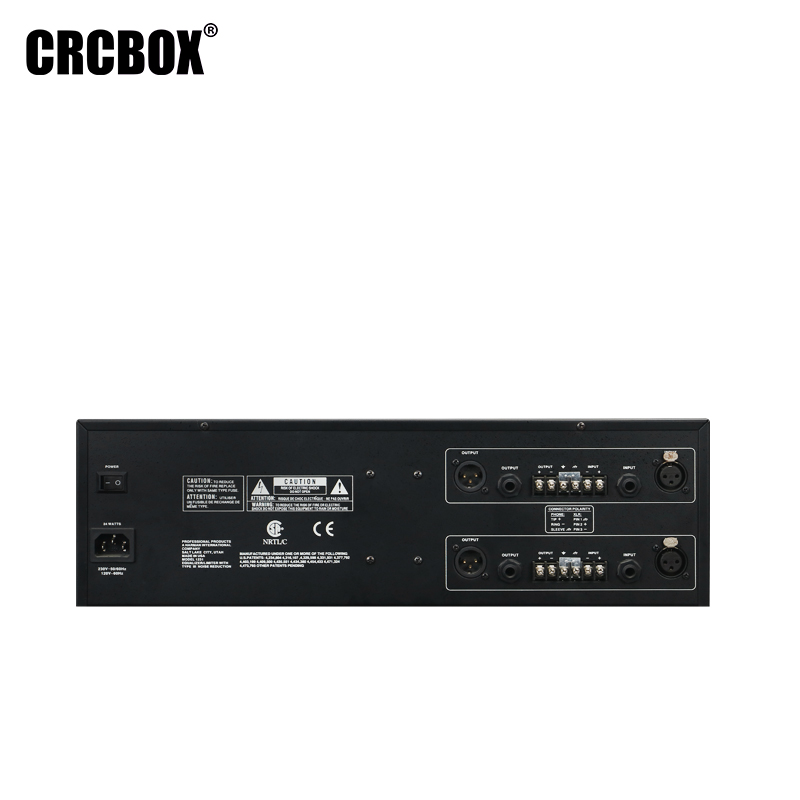

Connectors: 1/4 inch TRS, male XLR (pin 2 hot), and barrier terminal strip
Type: Impedance-balanced/unbalanced, RF filtered
Impedance: Balanced 200 ohms, unbalanced 100 Ohms
Maximum Output Level: >+21dBU balanced/unbalanced into 2kOhms or greater
>+18dBm balanced/unbalanced (into 600 ohms)
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: <10Hz to >50kHz, +0.5/-3dB
+/-15dB Range: 109dB +-6dB Range: 115dB
+/-15dB Range: 90dB +-6dB Range: 97dB
Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
EQ Bypass: Bypasses the graphic equalizer section in the signal path
Low Cut (recessed): Activates the 40Hz 18dB/octave Bessel high-pass filter
Rance (recessed): Selects either +/-6dB to +/-15dB slider boosy/cut range
Output Level: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and 18dBu
EQ Bypass: 1 LED: red
Clip: 1 LED: red
Low Cut: 1 LED: red
+/-6dB: 1 LED: yellow
+/-15dB: 1 LED: red
Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz
Power Consumption: 24 watts
Mains Connection: IEC receptacle
The innovative technology has precious technology, with maintenance-free performance for a variety of long-term application, site isolation transformer, electronically balanced / unbalanced inputs and unbalanced outputs, inputs and outputs are equipped with radio frequency filters, as well as the hard-line interrupt bypass of power turning off and 2 seconds power-delay, enabling engineers to ensure the compatibility of various installation. Balanced input and output are for low noise operation; and the elimination of AC noise chassis / signal ground lift function.
|Input Connectors||1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip|
|Input Type||Electronically balanced/unbalanced, RF filtered|
|Input Impedance||Balanced 40 kOhm, unbalanced 20 kOhm|
|Max Input||>+21dBu balanced or unbalanced|
|CMRR||>40dB, typically >55dB at 1kHz|
|Output Connectors||1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip|
|Output Type||Impedance-balanced/unbalanced, RF filtered|
|Output Impedance||Balanced 200 ohm, unbalanced 100 ohm|
|Max Output||>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)|
|Bandwidth||20Hz to 20kHz, +0.5/-1dB|
|Frequency Response||<10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range|
|Dynamic Range||109dB; 115dB|
|Signal to Noise Ratio||90dB, 97dB|
|Interchannel Crosstalk||<-80db, 20Hz to 20kHz|
|Bypass Switch||Bypasses the graphic equalizer section in the signal path|
|Low cut Switch||(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter|
|Range Switch||(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range|
|I/O Meter||4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu|
|Indicators||EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)|
|Operating Voltage||100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz|
|Power Connector||IEC receptacle|
|Dimensions||5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm)|
|Unit Weight||10.6 lbs.|
|Shipping Weight||11.6 lbs.|
