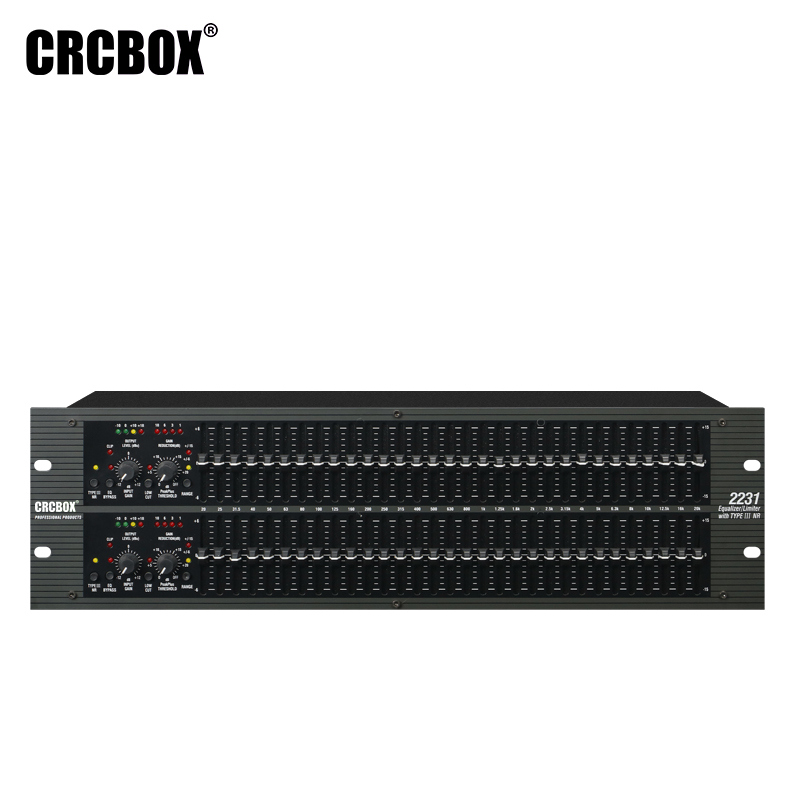

Professional audio limiter EQ 2231 graphic equalizer


Product Brands: Crcbox

The Dual Channel 31 Graphic Equalizer 2231 is Revolutionary instant encode/ decode type noise Reduction in-circuit at the push of a button. Increases S/N ratio by upto 20dB. Patent-pending peakplus™ Limiter Threshold range from OdBu to +24dBu(off) can transparently tame the wildest hits or the subtlest nuances of any signal. Status LEDs offer visual feedback for all settings on the fron

(0 Reviews)


$320.00 $398.00

Input voltage:

AC 110V AC 220V


- + (10,000 available)

Shipping Cost:

--- to via ---

Sales: 0
Add to Favorite Items (0)
Lv.10% OFF


Professional audio limiter EQ 2231 graphic equalizer

Dual 31-Band electronic graphic equalizer (with compressor and Type III Noise Reduction)
2231 is designed basing on 1231 with adding compression limiter and type Ⅲ Dolby noise reduction equalizer. With type Ⅲ Dolby noise reduction function, help to further reduce the noise of the system, making the system very quiet. Compression limiter function use the currently best limiter IC (THAT2181 and THAT2522) for production, with greater than 120dB dynamic range, less than 0.0025% distortion, totally can meet with the professional level compression limiter. 2231 is a professional equalizer with equalizers, compressors, limiters, type Ⅲ Dolby noise reduction, such three kinds of equipments together, widely using in various high-end applications.


High-strength 3U aluminum panel chassis, beautiful and practical


dual filter dust-proof design, the complete elimination of dust impacts


45mm length faders produced by brand-named manufacturer, with good hand-feeling, precise adjustment


high-power switching power supply, with stable performance, wide voltage range


double-sided circuit board production, with reliable performance, low noise


Imported IC and high precision RC components, with high consistency, good sound quality

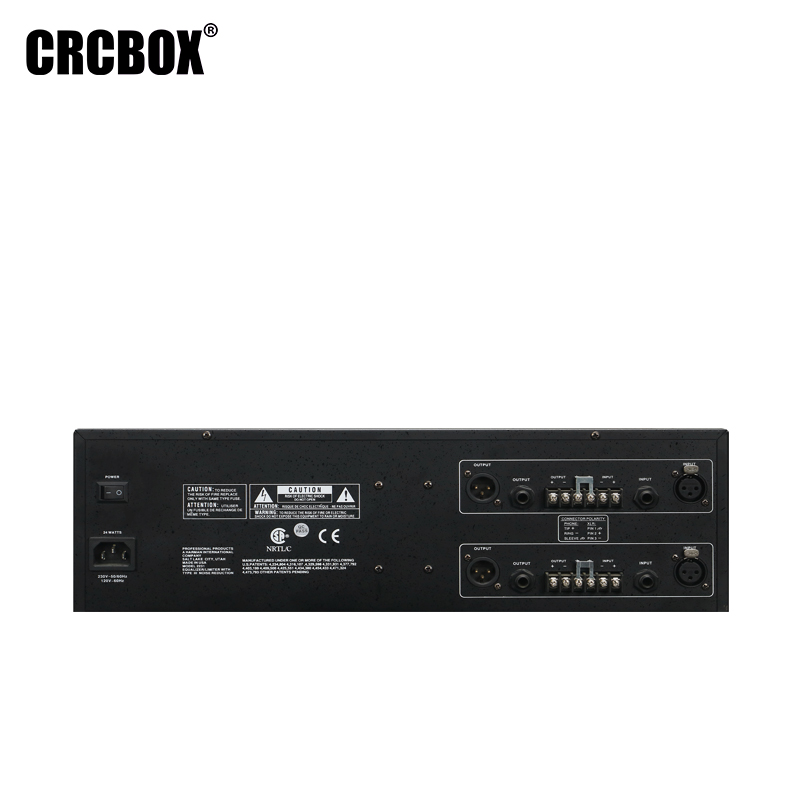

input / output connectors: 1/4 inch TRS, XLR and strip type terminals


professional-grade compression limiter function, with high dynamic range, low distortion

Professional audio limiter EQ 2231 graphic equalizer

Product Description

The Dual Channel 31 Graphic Equalizer 2231 is Revolutionary instant encode/ decode type noise Reduction in-circuit at the     push of a button. Increases S/N ratio by upto 20dB.

 Patent-pending peakplus™ Limiter Threshold range from OdBu to +24dBu(off)  can transparently tame the wildest hits or the   subtlest nuances of any signal.

 Status LEDs offer visual feedback for all settings on the front panel.

Professional audio limiter EQ 2231 graphic equalizer


Input Connectors  1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Type  Electronically balanced/unbalanced, RF filtered
Input Impedance  Balanced 40 kOhm, unbalanced 20 kOhm
Max Input  >+21dBu balanced or unbalanced
CMRR  >40dB, typically >55dB at 1kHz
Output Connectors  1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Type  Impedance-balanced/unbalanced, RF filtered
Output Impedance  Balanced 200 ohm, unbalanced 100 ohm
Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater;
>+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth  20Hz to 20kHz, ±0.5dB
Frequency Response  <10Hz to >50kHz, +0.5/-3dB


 (NR In: ±6dB & ±15dB ranges)

>102dB, unweighted, ref: +4dBu,

22kHz measurement bandwidth

Dynamic Range

 (NR In: ±6dB & ±15dB ranges)

>120dB, unweighted


(NR Out: ± 6dB range)

>94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth

Dynamic Range

(NR Out: ±6dB range)

>112dB, unweighted


(NR Out: ±15dB range)

>90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth

Dynamic Range

(NR Out: ±15dB range)

>108dB, unweighted
THD+Noise  <0.04%, 0.02% typical at +4dBu, 1kHz
Interchannel Crosstalk  <-80dB, 20Hz to 20kHz
Noise Reduction  Up to 20dB of dynamic broadband noise reduction
NR Switch  Activates dbx Type III Noise Reduction
Bypass Switch  Bypasses the graphic equalizer section in the signal path
Low cut Switch Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch  Selects either ± 6dB or ± 15dB slider boost/cut range
I/O Meter  4-LED bar graph at -10, 0, +10, and +18dBu
Gain Reduction Meter  4-LED bar graph (all Red)at0,3,6,and 10dB

NR Active (Yellow); EQ Bypass (Red);

Clip (Red); Low Cut (Red); ±6dB (Yellow);±15dB (Red)

Operating Voltage  100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption  28W
Power Connector  IEC receptacle
Dimensions 13.34cm x 48.3cm x 20.1cm
