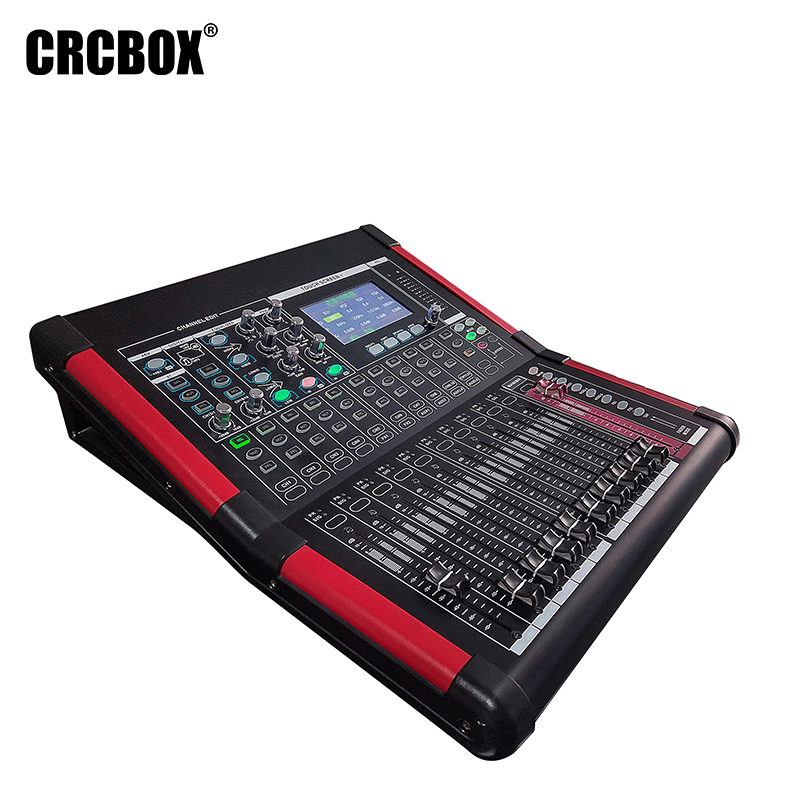

Digital Audio Mixer Console

Professional sound system 16 channel digital audio mixer

Product parameter

1: 16 signal inputs (8 MIC/Line inputs, 4 stereo inputs including digital inputs)

2: Input processing-input gain adjustment (electronic gain) preamplification, high and low pass filtering, 4-band parameter equalization,

compressor, delay, input channel sound image balance adjustment

3: MIC input adopts digital gain adjustment (participate in memory recall)

4: Independent +48V phantom power supply for each channel (MIC channels are turned on and off independently)

5: Input and output equalizer on/off

6: Stereo return input

7: Quick copy function of channel parameters

8: Each channel has a multi-function menu, mute button, and monitor button

9: Each channel is equipped with a 100MM electric fader, signal light, and peak light (11 faders)

10: 10 signal outputs (stereo main output, 6 AUX outputs, 1 stereo monitor output)

11: Output processing-high and low pass filtering, 13-band parameter equalization, compressor, delay, phase

12: Auxiliary output (pre-fader, post-fader)

13: Stereo digital recording function

14: Dual-row, three-color, 12-segment level indicator

15: Built-in sound card (MP3, PC play music directly)

16: 4 shortcut scene recall modes, 12 scene storage

17: Storage and recall of user parameters (can be managed on the PC side)

18: Built-in 2 stereo DSP effects (40 preset effects)

19: 4.3 inch 480*270 high-definition touch color screen

20: FX foot switch interface

21: Optical fiber input and output

22: Multi-operating system control software (IOS system, Android system, WINDOWS system) Chinese and English switching display

23: Support wired network port adjustment (or external wireless adjustment)

24: Parameter lock function

25: Open 232 central control control protocol

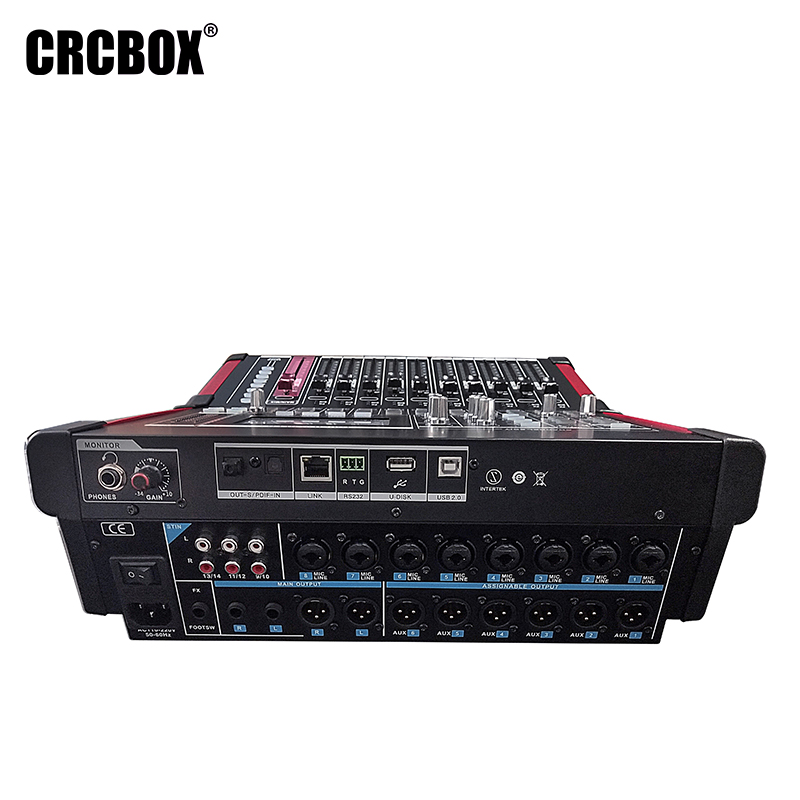

Professional sound system 16 channel digital audio mixer

Technical parameter

input

Mic/channel input：1-8

balance，XLP与1/4 TRS jack

control

Fader

100mm电动

Input sensitivity（XLR/TRS）

XTR1.5mv,TRS改成7mv

touch screen

4.3”TFT，480×270分辨率

Input analog gain

-32db - 10db , 0.6~0.7

Output grouping

yes

Maximum input level（XLR/TRS）

+19dBu/+29dBu

Mute group

input resistance（XLR/TRS）

MIC＞5K ，LINE＞10K

network

TCP/IP

Mic Enter stereo link

System Upgrade

USB

Parameter link

Wired connection

Windows PC

polarity

Normal/flip

wireless connection

Windows PC/iPad/android

Stereo line input

Input processing

Input source

CH1-CH8，ST1/ST2/ST3 ST4

ST1/ST2/ST3

ST1/ST2 3.5，ST3 1/4 TRS插口

Equalizer

4 parameters EQ, (20HZ--20KHZ)±12dB,Q0.3~15

ST4 Interface (digital)

USB Audio stream，USB，S/PDIF

High and low pass

12db/24db,(BT/BS/LRK),20-20K

Input sensitivity

4dB

Noise gate

Self-chain sidechain

Input analog gain

-32db - 10db , 0.6~0.7

Gate threshold

-135db - -40db

Maximum input level

+29dB

Shock/release

50us-300ms/10ms-5s

input resistance

>7KΩ

Compressor

Self-chain sidechain

Stereo link

yes

Threshold ratio

-40db-+6db/1:1

Parameter link

Equalization, dynamics, delay, allocation, sending

Delay

Max 20ms

polarity

Normal/flip

Output

Mix 1-6 and left and right output

balance，XLR，L/R,,6AUX

Output processing

Output channel

L/R,6AUX

Output impedance

<75Ω

Equalizer

EQ, (20HZ--20KHZ)±12dB,Q0.3~15

Nominal output

+4dbu=0db Level meter reading

High and low pass

12db/24db,(BT/BS/LRK),20-20KHZ

Residual output noise

=-91dbu

Compressor

Self-chain sidechain

Mix insertion

Assign FX into the mix channel

Threshold ratio

-40db-+6db/1:1到无穷大

Dynamic Range

112dB

Delay

Max 30ms

Signal-to-noise ratio

XLR≥ 92db,TRS≥82db

USB

drive

CH340(USB A)

Maximum output voltage

4VAC MAX

equipment

Use a USB hard drive

Distortion

＜0.0003%（1KhzFull Power）

Stereo recording

2通道(wav/mp3)48KHz 24

Frequency response

20HZ-20KHZ+/-0.5db

Stereo playback

2 channel WAV/MP3)32-96KHz,16-24

Sampling Rate

48KHz ±100PPM

USB

Sound card

USB B

ADC/DCA

24位Delta-sigma

Send upstream

2 Channel full format，32KHz-96KHz 24位

Inside FX

2xFX Engine, send>return or insert

Send downstream

2channel，MP3,48KHz,24位

Types

Reverb, delay, chorus, flanger, symphonic chorus, etc.

2 dedicated stereo FX returns

Fader, pan, mute, send to mix/LR, 4-band EQ

System

Embedded Systems

Chinese and English language switch

Power

100-240VAC,50-60HZ,60W

Professional sound system 16 channel digital audio mixer

Machine size/weight

Length, width and height: 380x430x140MM (length includes 6.35 input seat, width includes side panel, height includes angle feet; does not include knob)

Net weight: 5.56KG Gross weight: 7KG

Packing size: 450x510x200MM
