Multi-purpose equipment current impact protection switching power supply sequencer

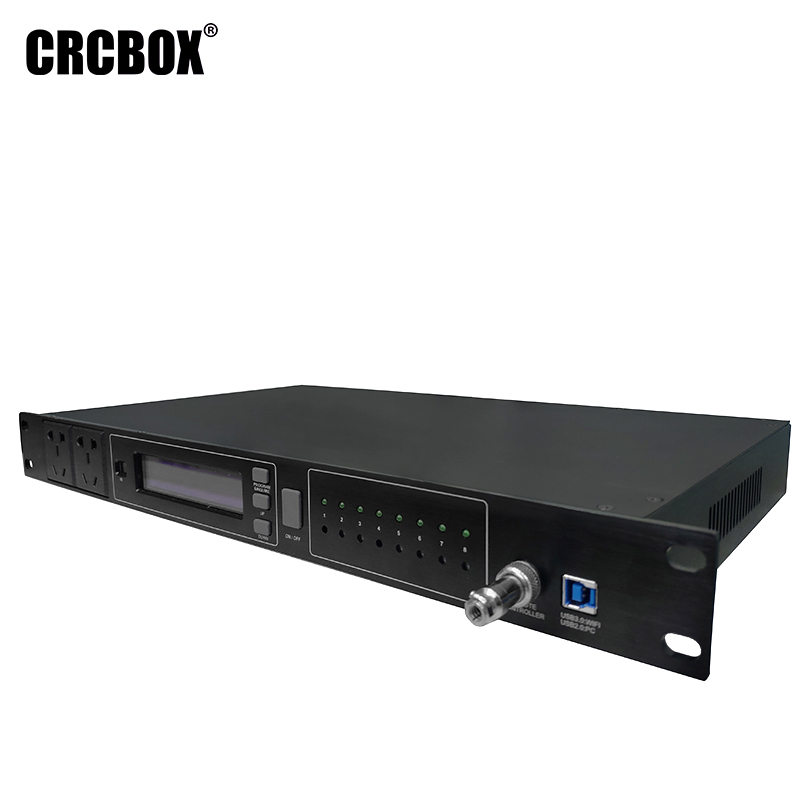

Single phase digital timing digital power sequencer

Features

Using 32-bit ARM core processor as the controller. The delay time is programmable & more precise reliably

8 channels with a total power of 8KW, Each channel has high performance and RFI/EMI power filter to offer clean and stable power

2 × 24 LCD blue backlight display function setting operation interface makes device operation more intuitive;

Each channel is equipped with an independent hardware emergency shutdown switch, which can be used to emergency shut off the power output of a certain channel;

Password function can be set to better protect the system's power safety management;

Software editing function, which can independently adjust the delay time of channel startup and shutdown;

The device has a built-in timing switch function, which can set up to 12 months of timing time;

The device has a built-in central control code generator, which is convenient for third-party equipment to edit the code;

The device has a built-in remote control, allowing users to open and close the device anytime and anywhere;

Multiple expansion and cascading settings can be performed with the same type of power sequencer, without the need to purchase other control devices;

Various equipment controlled control methods, TCP / IP, WIFI, USB, RS485, RS232 online control plus external (remote) control can control complex power systems
This equipment can control third-party equipment through infrared learning function and IO control function.

Using the new national standard 10A universal safety cover socket, making the safety of electricity more secure.

Single phase digital timing digital power sequencer

Technical Parameters:

model	PR680F
Operating Voltage	Single-phase AC220V (± 20%)
working frequency	50Hz OR 60Hz
CPU	Using ARM core 32-bit processor
System parameter display mode	2 × 24 LCD blue backlight LCD display
power input	Connect single-phase 3-core terminal block, can connect 3-core single-phase cable
RFI / EMI Power Filter	Independent filters for each channel, 8 in total
Timing channel	8-channel independent control timing channel, 8-channel independent normally open control, 8-channel independent hardware switch-type emergency stop setting
RFI / EMI Power Filter	Without power filter

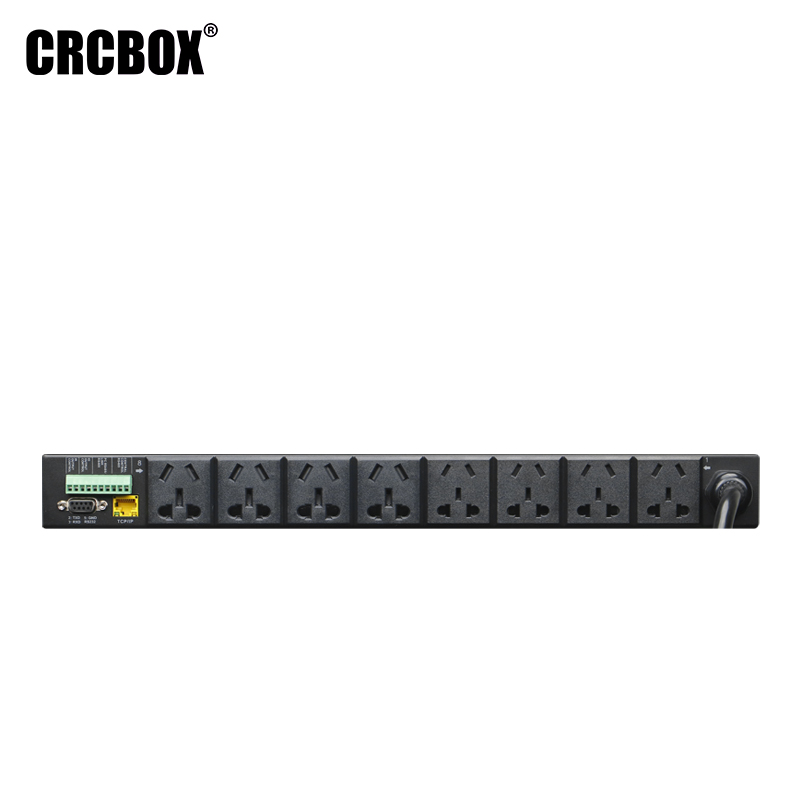

Power output socket	8-way national standard 10A safety cover socket, the two panels on the panel pass through to the national standard 10A safety cover socket
Power Output	Power output single-phase total limit load current is 40A a. Under the condition of audio load, the total current of each limit is 20A b. In the case of pure resistance load, the total current of each limit is 10A.
Remote control interface	RS485, RS232, TCP / IP, USB3.0 / USB2.0, wire control
Infrared learning function	Built-in IR learning function
software	PC software that can program and control the device through software
Timing function	Built-in perpetual calendar, the device can perform daily and weekly device timing, and can be set to switch on and off 6 times a day
Timing time	Can be set and changed by yourself. The power-on delay is 1 to 999 seconds and the power-off delay is 1 to 999 seconds.
Password function	Can be set without password selection function lock and 6 digits, letters, symbols password selection function lock
Device cascade ID setting	250 ID can be set for cascade control
Control code	Device software built-in central control code generator
Program storage	5 sets of data storage
Antistatic test	May pass antistatic 4000V test
Pressure test	May pass 5000V test
Ground resistance	R≤100Ω
Installed height	1U
Product size (width x depth x height)	width：482mm、depth：295mm、height：48mm
net weight	4.5kg
Shipping size (width x depth x height)	width：555mm、depth：389mm、height：98mm
Gross weight	5.1kg
